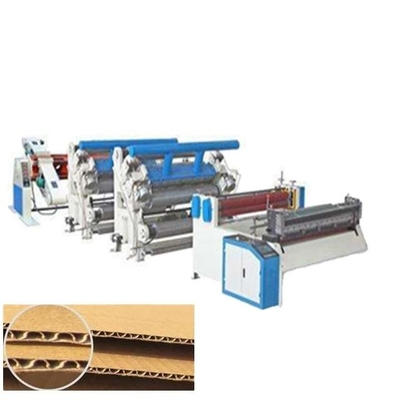

| 전력 소비: | 3kw | 제품 이름: | 물결모양 카톤 박스 기계 |
|---|---|---|---|
| 용량: | 50-100pcs/min | 재료: | 스테인레스 스틸 |
| 설계 속도: | 100m/분 | 무게: | 3000kg |
| 전압: | 220V/380V | 플레이트 유형: | 골판지재 |
| 강조하다: | 3000kg carton cardboard machine,corrugated carton box production line,heavy duty cardboard box machine |
||
| Parameter | Value |
|---|---|
| Work width | 1600mm |
| Paper diameter | MAX: 1500mm MIN: 300mm |
| Paper width | MAX: 1600mm MIN: 600mm |
| Max. weigh | 3T |
| Clip paper head | Tooth type 3 in 4 in |
| Brake | Disc multipoint pneumatic |
| Air pressure | 0.4-0.8Mpa |
| Size | 4000×1800×1800 |
| Weight | ≈3.5T |
| Parameter | Value |
|---|---|
| Work pressure | 16-18Mpa |
| Lift hydraulic cylinder | ￠100×440mm |
| Clip the hydraulic cylinder | ￠63×1300mm |
| Motor power of the hydraulic station | 3.7KW --380V -- 50Hz |
| Electromagnetic valve voltage | 220V--50 Hz |
| Parameter | Value |
|---|---|
| Diameter | Φ215mm |
| Processing Way | Surface of glue roller is grinded, then with 25 line rut type net dot, then plating chrome. Surface of glue balance roller is grinded then plating chrome |
| Control Way | Cylinder control of the Lifting Up-down |
| Glue Supply | Glue circulating system (storage tank+glue pump) |
| Parameter | Value |
|---|---|

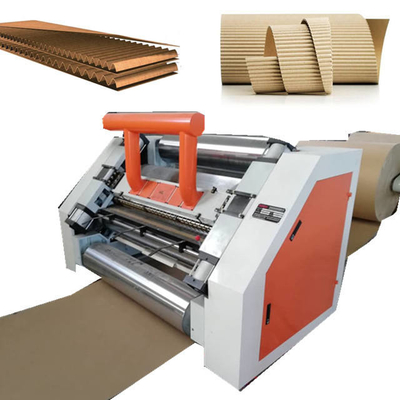

| Diameter | Down Roller: Φ280mm |
| Material | 48CrMo high quality alloy steel, rigidity HRC55°-58° |
| Processing Way | The surface of upper-lower roller is plating chrome, annealing, hardening and tempering, surface grinded |
| Flute Type | (U/V) ACBEFK |
| Heating way of the reel paper | Steam, oil, Electric heating |
| Parameter | Value |
|---|---|
| Diameter | Φ280mm |
| Material | Medium steel (MS)45# |
| Processing Way | The surface is grinded then plating chrome, hardening and tempering (With Buffer) |
| Control Way | Cylinder control of the Lifting Up-down |
| Parameter | Value |
|---|---|
| Diameter | UP Roller: Φ320mm |
| Material | Seamless steel tube |
| Material band or origin | Tianjin Iron & Steel |
| Parameter | Value |
|---|---|
| Style of Transmit cardboard | Vacuum Cover adsorbable style, High pressure Draw fan with wind control Adjusting & noise deadening device |
| Style of Control Roller | Pneumatic control the upper roller, pressure roller and glue roller |
| Glue Width Adjusting | Electric adjusting |
| Driving Way | With frequency inverter |
| Parameter | Value |
|---|---|
| Width | 1600mm |
| Cutting length | 300-999mm |
| Order keeping | 99 orders |
| Cutting precision | ±1.5mm |
| Max. design speed | 80m/min |
| Max. production speed | 60-70m/min |
| Weight | 2000kg |
The single corrugated paper stacker is used with the cut off machine. The cut off machine cuts the cardboard and the single corrugated paper stacker collects the cardboard, saving worker effort. The machine is made of medium plate welding.
The machine max. speed is 100m/min. The collect cardboard length is 1000mm. The machine can collect three unit cardboard. The machine can auto counter and does not need to stop the machine. The max. height stacker is 100mm.
